In industrial production, new energy testing, and power equipment operation and maintenance, high-power DC power supplies are core power supply and testing equipment. Their operating efficiency directly affects electricity costs, equipment heat dissipation, and overall production efficiency. Improving the efficiency of high-power DC power supplies is not a matter of optimizing a single aspect, but rather a comprehensive upgrade from circuit design and component selection to operational control. This allows high-power DC power supplies to reduce energy loss under high load output conditions, maximizing energy conversion and utilization, and meeting the actual needs of various fields for energy-efficient power supply.
Optimizing Core Circuit Topology to Reduce Energy Conversion Losses
The energy conversion losses of high-power DC power supplies mainly occur during the operation of the circuit topology. Optimizing the topology is a core measure to improve efficiency. Abandoning traditional inefficient rectifier and inverter topologies and adopting a soft-switching topology can effectively reduce the turn-on and turn-off losses of switching transistors, reducing unnecessary energy consumption in the circuit. Simultaneously, the rectification and filtering stages of the high-power DC power supply are upgraded to improve rectification accuracy and filtering stability, resulting in smoother current transmission. This reduces energy loss from the source of circuit design, improving overall conversion efficiency.
High-performance components are carefully selected to enhance equipment compatibility.
The performance of components directly determines the operating efficiency of a high-power DC power supply. Inferior components increase internal resistance and heat loss. In the manufacturing of high-power DC power supplies, core components such as power transistors, capacitors, and inductors with low internal resistance, high temperature resistance, and high conversion efficiency are selected. This reduces internal resistance loss during current transmission, allowing components to maintain stable operation under high load conditions. Attention is also paid to component matching, ensuring coordinated operation of all components and avoiding additional energy consumption due to poor component compatibility, thus guaranteeing efficient operation of the high-power DC power supply across the entire power range.
The heat dissipation and control system is upgraded to reduce the impact of heat loss.
High-power DC power supplies generate a large amount of heat during high-power output. Overheating not only affects equipment stability but also increases heat loss and reduces efficiency. Equipped with a high-efficiency cooling system featuring intelligent temperature control, this high-power DC power supply combines heat pipe cooling and air-cooled inverter technologies to adjust the cooling power according to the actual operating temperature of the equipment. This ensures effective heat dissipation while avoiding unnecessary energy consumption. Simultaneously, the internal layout of the high-power DC power supply is optimized to improve airflow and reduce heat buildup inside the equipment, minimizing the impact of heat loss on overall efficiency.
Featuring an intelligent control module for precise power output
In many scenarios, efficiency losses in high-power DC power supplies stem from a mismatch between power output and load demand. An intelligent control module effectively solves this problem. This module can detect the load's power requirements in real time and precisely adjust the output power of the high-power DC power supply, avoiding ineffective output ("overpowered power for insufficient load") and ensuring a high degree of match between output power and load demand. YIBENYUAN's high-power DC power supplies are equipped with this type of intelligent control module, achieving precise power adaptation in scenarios such as new energy battery testing, effectively improving actual operating efficiency.
Improving the efficiency of high-power DC power supplies is the result of multi-dimensional optimization. From circuit topology and component selection to heat dissipation and regulation, upgrades in each aspect can reduce energy loss and improve the power conversion efficiency of equipment. Under the industry trend of energy conservation and emission reduction, the high-efficiency upgrade of high-power DC power supplies can not only reduce electricity costs in various application areas but also improve equipment lifespan and operational stability, becoming the core direction of high-power DC power supply technology development.
YIBENYUAN Power Expert：

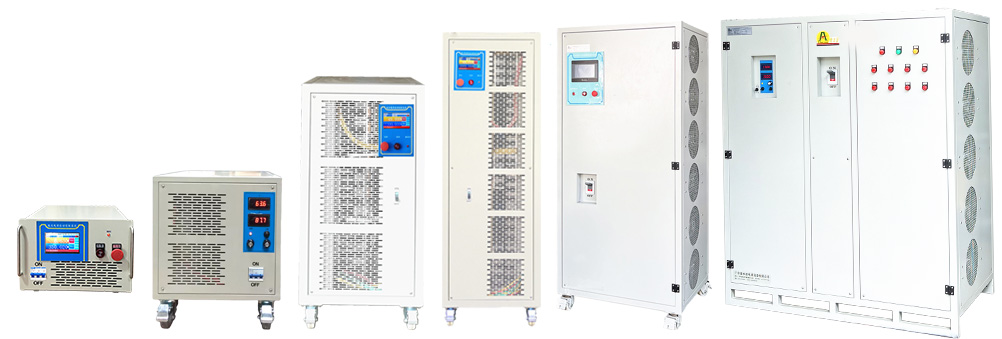

We customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 20000A. We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing.
