In industrial processing fields such as electrical discharge machining, metal plating, anodizing, and precision etching, pulse power supplies are the core equipment that provides intermittent pulsed electrical energy. The parameter settings of a pulse power supply are not isolated numerical adjustments; their values and combinations directly affect the final results of the machining process. From machining accuracy and surface quality to production efficiency and electrode wear, all are closely related to these parameters. Clarifying the intrinsic relationship between pulse power supply parameters and machining process results is key to optimizing machining plans and adapting to different processing needs. Controlling pulse power supply parameters is also a core aspect of making the machining process conform to actual production requirements. Today, we will break down the core parameters of pulse power supplies and analyze their specific impact on machining process results.
Pulse Width and Frequency: Core Control of Machining Efficiency and Accuracy
Pulse width and pulse frequency are the most basic core parameters of the pulse power supply, and also the primary factors affecting the effect of processing technology. The pulse width of the pulse power supply refers to the duration of a single pulse discharge. The larger the pulse width of the pulse power supply, the higher the energy released by a single pulse and the processing efficiency will be improved accordingly. However, excessive energy is easy to form a heat-affected zone on the workpiece surface, causing problems such as microcracks and increased surface roughness, reducing processing accuracy. On the contrary, the narrow pulse width of the pulse power supply can reduce thermal damage, make the workpiece surface smoother, suitable for precision processing, but will lead to a decline in processing efficiency due to insufficient single energy.
The pulse frequency of a pulse power supply determines the number of discharges per unit time. Higher frequency results in smaller discharge gaps and higher machining positioning accuracy, suitable for micro-parts and precision etching processes. Low-frequency settings expand the discharge gap, reducing chip accumulation problems during processing, and are more suitable for rough machining and large material removal scenarios. The pulse power supply needs to balance the values of pulse width and frequency according to actual processing needs, avoiding sacrificing machining accuracy for the sake of efficiency.
Peak Current and Open-Circuit Voltage: Key Support for Discharge Stability
The peak current of the pulse power supply is the maximum current value during pulse discharge, which directly determines the energy intensity of single discharge. The larger the peak current of the pulse power supply, the higher the processing efficiency, but it will accelerate the wear rate of the electrode, and may also cause ablation marks on the workpiece surface. Especially in electrical discharge machining, excessively high peak current will greatly reduce the service life of the electrode; a reasonable peak current setting can find the best balance between processing efficiency and electrode wear, making the process effect more in line with production requirements.
The no-load voltage of the pulse power supply affects the breakdown capacity of the discharge gap. The higher the voltage, the larger the range of the breakdown gap, the better the discharge stability in the processing process, which can effectively avoid the problem of discharge interruption and is suitable for the processing of complex-shaped workpieces; too low no-load voltage is easy to cause breakdown failure, leading to the interruption of processing technology and affecting the continuity of production. These two parameters of the pulse power supply need to be adjusted in coordination to ensure the stable operation of the processing process.
Duty Cycle: The Dynamic Balance Regulator of Process Effects
The duty cycle of the pulsed power supply is the ratio of pulse width to pulse period. It is an important parameter connecting pulse width and frequency, and is also key to regulating the thermal effects of the machining process. A high duty cycle means a larger proportion of discharge time per unit time, significantly increasing processing efficiency. However, the heat-affected zone of the workpiece will expand accordingly, easily leading to problems such as workpiece deformation and insufficient coating adhesion, making it unsuitable for precision machining and thin-walled part processing. A low duty cycle reduces thermal damage, resulting in higher surface quality and smaller form and position errors of the machined workpiece, making it the preferred choice for precision machining and fine electroplating processes.
Different machining processes have significantly different requirements for the duty cycle of the pulsed power supply. For example, electrical discharge finishing requires the duty cycle to be controlled within a low range, while the pulsed electroplating process of metal surfaces requires flexible adjustment of the duty cycle according to the required coating thickness and uniformity.
Parameter Matching: The Core Logic of Pulsed Power Supply Adaptation to the Process
Optimizing a single parameter cannot maximize the effect of the machining process. All parameters of the pulsed power supply need to be coordinated and dynamically adjusted, combined with the processing material, workpiece shape, and process type for comprehensive setting. In the field of fine-tuning and process adaptation of pulsed power supply parameters, brands such as YIBENYUAN have, through technological advancements, made pulsed power supply parameter adjustment more precise and better suited to the processing needs of different industries, providing equipment support for the parameter optimization of various processing techniques.
The parameters of a pulsed power supply have a comprehensive and interconnected impact on the processing results; there is no single set of parameters that is suitable for all processes. Only by combining the actual production process requirements and precisely adjusting the various parameters of the pulsed power supply to achieve the optimal combination can a balance be found between processing efficiency, surface quality, and processing accuracy, allowing the processing results to meet expectations. In the future, as industrial processing develops towards precision and intelligence, the parameter adjustment of pulsed power supplies will also upgrade towards adaptive and personalized directions, better adapting to the needs of various new processing techniques.

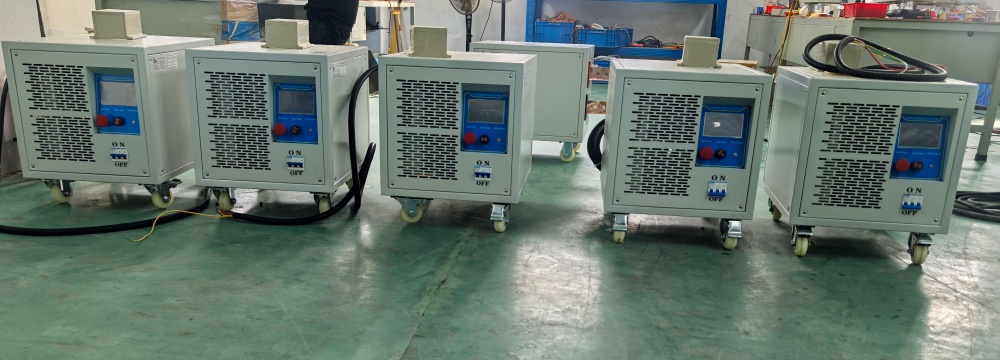

YIBENYUAN Power Expert：
