In the field of metal surface treatment, the anodizing process is a crucial step in improving the corrosion resistance, wear resistance, and aesthetics of materials. The achievement of these effects depends on the precise power supply provided by the anodizing power supply. The technical parameters of an anodizing power supply are not just cold numbers, but rather a "customized guide" tailored to different metal materials and process requirements, directly determining the density, uniformity, and stability of the oxide film layer. Today, we will break down the core technical parameters of anodizing power supplies and understand the underlying process logic.
Power Supply Voltage and Current Parameters
As the most critical technical indicators of an anodizing power supply, the voltage and current parameters directly match the basic requirements of the oxidation process. The voltage output range of an anodizing power supply is usually adjustable from 0-100V, and some industrial-grade equipment can extend to 150V, adapting to the oxidation needs of different metal materials such as aluminum, magnesium, and titanium – for example, aluminum alloy anodizing commonly uses 12-24V voltage, while hard anodizing requires a high voltage output of 30-60V.
Current parameters are equally crucial. The current output of an anodizing power supply is divided into two types: DC and pulsed. The current density is usually adjustable in the range of 0.5-5A/dm². DC output is suitable for conventional oxidation processes, while pulsed current can reduce Joule heating during the oxidation process, preventing film layer burning, and is especially suitable for surface treatment of precision parts. The current output fluctuation of a high-quality anodizing power supply needs to be controlled within ±1%, ensuring uniform film thickness and avoiding local color differences or pinhole defects.
Key Performance Guarantee Parameters
The long-term stable operation of an anodizing power supply depends on the synergistic effect of multiple performance guarantee parameters. Among them, the ripple coefficient is one of the core indicators. A high-quality anodizing power supply requires a ripple coefficient of less than 3%. Low ripple can avoid the interference of current fluctuations on the growth of the oxide film, making the film structure denser. At the same time, overload protection, short-circuit protection, and over-temperature protection functions are essential parameters. When the load is abnormal or the equipment temperature exceeds 60℃, the power supply can quickly cut off the output, protecting both the equipment and preventing workpiece damage caused by process interruption. Furthermore, the conversion efficiency of the anodizing power supply is also a crucial performance parameter. Industrial-grade equipment typically has a conversion efficiency of no less than 90%. High conversion efficiency not only reduces energy consumption costs but also reduces equipment heat generation and extends its lifespan. In continuous operation scenarios, the long-term stable operation capability of the anodizing power supply (usually requiring 24 hours of uninterrupted output) is a vital guarantee for large-scale production.
Application-Specific Parameters

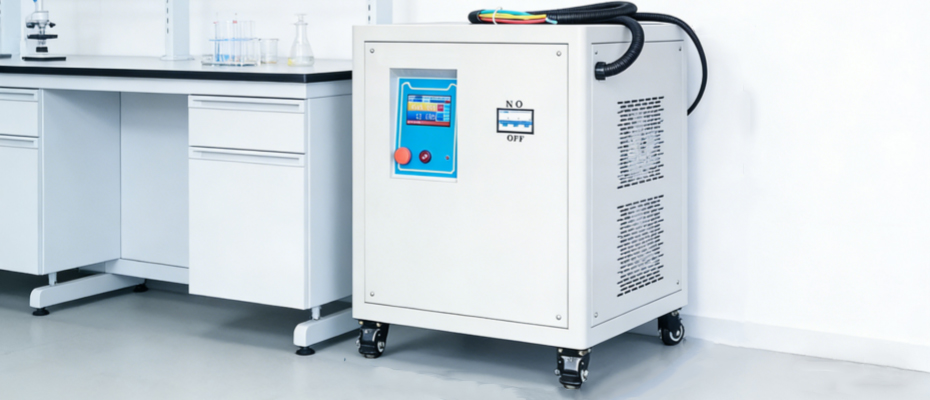

Different production scenarios have significantly different parameter requirements for anodizing power supplies, and application-specific parameters determine the versatility and practicality of the equipment. The power adjustment range is a core adaptation parameter. Anodizing power supplies typically range from 500W to 100kW. Small laboratories commonly use 500W-5kW equipment, while large industrial production lines require high-power power supplies of 20kW or more to meet the simultaneous processing needs of batches of workpieces.
Response speed parameters are also crucial. The current rise time of the anodizing power supply needs to be controlled within 10ms, allowing for rapid adaptation to dynamic adjustments of process parameters. For example, the current can be adjusted in real-time during the oxidation process based on the film growth situation, improving process flexibility. In addition, the power supply's compatibility parameters (such as supporting multiple control methods: local control, remote PLC control) allow the anodizing power supply to seamlessly integrate into automated production lines, adapting to the intelligent needs of modern industry.
In the parameter optimization and scenario adaptation of anodizing power supplies, brands like YIBENYUAN have made their equipment more suitable for small and medium-batch production and precision processing by refining parameter ranges and improving performance stability, making them the preferred choice for many companies.
Future Trends in Technical Parameters
As the anodizing process develops towards refinement and environmental friendliness, the technical parameters of anodizing power supplies are also constantly being upgraded. Future anodizing power supplies will further reduce the parameter adjustment step size, achieving precise fine-tuning of voltage and current; at the same time, low energy consumption parameters will become a core competitive advantage, reducing standby power consumption through optimized circuit design, aligning with environmentally friendly production concepts. Furthermore, intelligent parameter monitoring functions (such as real-time display of current and voltage changes corresponding to film growth) will gradually become widespread, making process control more intuitive and efficient.
The technical parameters of anodizing power supplies may seem complex, but they are essentially a direct reflection of process requirements. Understanding the core logic behind these parameters allows you to quickly select the appropriate equipment and optimize the anodizing process to improve stability and product yield – this is precisely the core value of anodizing power supply technical parameters.
