In electronic projects, equipment repair, or laboratory testing, a stable and adjustable power supply is a core tool. Adjustable regulated power supplies, with their ability to flexibly adjust voltage and current, have become essential equipment for electronics enthusiasts and professional technicians. However, many people experience equipment malfunctions due to unfamiliarity with the operation. In fact, mastering the correct methods will allow it to perform reliably. Below, we will detail the steps and practical tips for using an adjustable regulated power supply.
Before Use: Preparation and Troubleshooting
Pre-use inspection is the foundation of safe power supply. First, confirm whether the input voltage of the adjustable regulated power supply matches the mains voltage to avoid power supply burnout due to incompatible voltage. Then check if the power output interface and wires are damaged or oxidized, and if the terminal blocks are firm. If loose, tighten them in time. It is recommended to choose equipment from regular brands to ensure safe use. For example, YIBENYUAN's adjustable regulated power supply is more reliable in interface design and safety protection. At the same time, place the power supply in a well-ventilated and dry environment, away from flammable materials, to ensure good heat dissipation and avoid overheating during long-term operation.
Wiring Operation: Standardized Connection, Avoiding Short Circuits
Wiring is a crucial step, and the principle of "connect the load first, then turn on the power" must be strictly followed. First, distinguish the positive and negative output terminals of the power supply. Usually, red is positive and black is negative. Select appropriate wires according to the equipment requirements, ensuring that the rated current of the wires is greater than the maximum current of the load. Connect the positive terminal of the load equipment to the positive output terminal of the power supply, and the negative terminal to the corresponding terminal. During wiring, ensure good contact without loose or short-circuit risks. If the load equipment has special power supply requirements, check the manual in advance to confirm whether grounding is needed to avoid static electricity or leakage affecting the normal operation of the equipment.
Parameter Adjustment: Precise Setting, Adapting to Needs

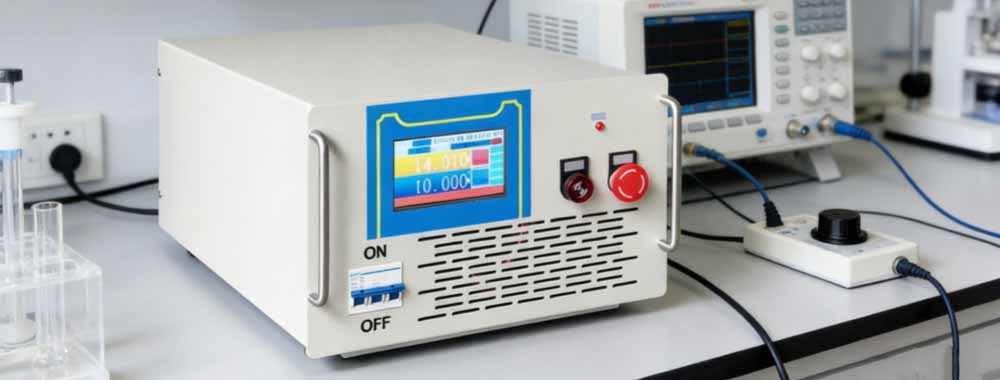

After wiring is completed, you can adjust the voltage and current parameters. Turn on the power switch, slowly adjust to the target voltage through the voltage adjustment knob on the panel according to the load requirements. During the adjustment process, observe the value on the power supply display to ensure accuracy. Current adjustment should follow the principle of "from large to small". First, adjust the current knob to a value slightly larger than the rated current of the load, then fine-tune according to the actual working conditions to avoid failure to start the equipment due to too small current or damage to the equipment due to too large current. Some adjustable regulated power supplies support switching between constant voltage and constant current modes. You need to select the corresponding mode according to the load characteristics. For example, motor loads are suitable for constant current mode, and electronic component testing is suitable for constant voltage mode.
During use: Real-time monitoring, pay attention to details
During the operation of the equipment, it is necessary to pay real-time attention to the working status of the adjustable regulated power supply. Observe whether the voltage and current values on the display are stable. If there is excessive fluctuation, check if the load is short-circuited or the wiring is loose. At the same time, pay attention to the heat dissipation of the power supply. If the body temperature is too high, stop using it and continue after cooling. Avoid plugging or unplugging wires when the power supply is working. If you need to replace the load, turn off the power first to prevent instantaneous current impact from damaging the power supply and load equipment. After use, turn off the load equipment first, then turn off the adjustable regulated power supply, and finally disconnect the power supply from the mains to develop the habit of standardized operation.
Mastering the above steps allows you to easily control the adjustable regulated power supply. Whether it is electronic DIY production or professional equipment testing, you can obtain stable and reliable power supply support. Correct usage methods can not only ensure equipment safety but also extend the service life of the adjustable regulated power supply, making every power supply accurate and efficient.
