The Core Principle of Electrolyzed Water
The essence of electrolyzed water is to use the electrical energy provided by an external power supply to break the chemical bonds between hydrogen and oxygen atoms in water molecules, ultimately decomposing water into hydrogen and oxygen. In this process, the directional movement of electrons plays a decisive role. Without a stable and fixed - direction flow of electrons, the chemical bonds of water molecules cannot be broken in a regular manner, and the electrolysis reaction cannot proceed continuously.
The most prominent feature of a DC power supply is that it can provide a current with an unchanging direction, which perfectly meets the requirement of directional electron movement for electrolyzed water. Under the action of a DC power supply, the current continuously and stably flows out from the positive electrode of the power supply, passes through the electrodes and the electrolyte solution, and then flows back to the negative electrode of the power supply, forming a complete and stable circuit. In this circuit, electrons move in a fixed direction, providing continuous and orderly energy support for the decomposition of water molecules, ensuring that the electrolyzed water reaction can proceed smoothly and efficiently.
The Advantages of DC Power Supply in the Electrolyzed Water Process
1.Ensuring the Stability and Continuity of the Reaction
The stable current provided by the DC power supply can keep the electrolyzed water reaction in a stable environment at all times. The stability of the current magnitude and direction makes the reaction rate on the electrode surface consistent, and there will be no situation where the reaction speed is fast or slow due to current fluctuations. This stability is not only conducive to increasing the output of hydrogen and oxygen, but also ensures the purity of the generated gas and reduces the generation of impurities.
2.Facilitating the Precise Control of the Electrolysis Process
In the electrolyzed water process, it is sometimes necessary to adjust parameters such as the electrolysis rate and gas output according to different needs. The DC power supply can accurately control the electrolysis process by adjusting the magnitude of the output current and voltage. For example, when it is necessary to increase the hydrogen output, the output current of the DC power supply can be appropriately increased; when it is necessary to reduce the electrolysis energy consumption, the voltage can be adjusted reasonably. This precise control capability is incomparable to the AC power supply, enabling the electrolyzed water process to better meet the actual application requirements.
Key Points for Troubleshooting DC Power Supply Used in Electrolyzed Water
During the electrolyzed water process, problems such as reduced electrolysis efficiency and decreased gas output may sometimes occur. At this time, troubleshooting the DC power supply is particularly important.
First of all, check whether the output voltage and current of the DC power supply are stable. Professional measuring instruments, such as a multimeter, can be used to detect the output parameters of the power supply. If large fluctuations in voltage or current are found, it may be caused by the aging or damage of internal components of the power supply, and the power supply components need to be repaired or replaced in a timely manner.
Secondly, check whether the connection between the DC power supply and the electrodes is firm. If the connection is loose, it will lead to poor circuit contact, increase resistance, thereby reducing the actual current reaching the electrodes and affecting the electrolysis reaction. At this time, the connection points should be re - tightened to ensure the smooth flow of the circuit.
In addition, attention should also be paid to the heat dissipation of the DC power supply. During long - term operation, the power supply will generate a certain amount of heat. If the heat dissipation is poor, the temperature of the power supply will be too high, which will affect its performance and service life, and may even cause faults. Therefore, the heat dissipation holes of the power supply should be cleaned regularly to ensure the normal operation of the heat dissipation fan.

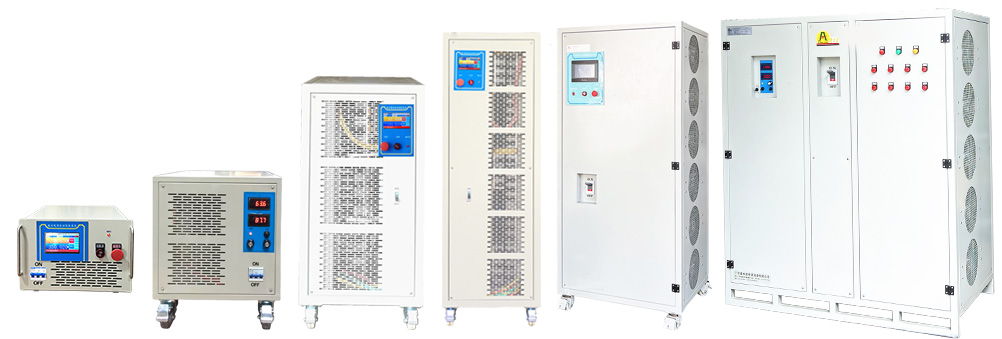

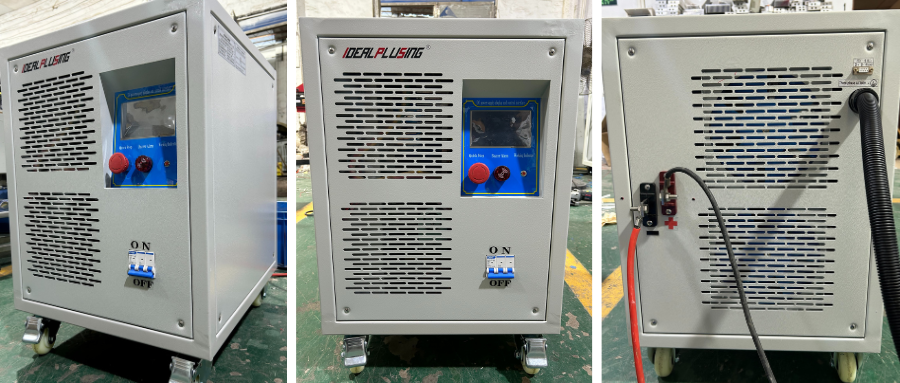

When choosing a DC power supply for electrolyzed water, products from some high - quality brands can better ensure the stability and efficiency of the electrolysis process. For example, the DC power supply of the YIBENYUAN brand has good performance in terms of stability and durability, and can provide reliable power support for electrolyzed water experiments or production.
YIBENYUAN specialize in customizing DC power supply to meet your specific requirements.
With customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 20000A. We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing.
Conclusion
The necessity of using a DC power supply for water electrolysis stems from the reaction principle of water electrolysis and the advantages of DC power. A DC power supply provides a stable and directional current, ensuring the continuous and efficient electrolysis reaction, while also facilitating precise control and troubleshooting of the process. In practical applications, selecting a suitable DC power supply brand and model, and ensuring proper daily maintenance and troubleshooting, are crucial to maximizing the effectiveness of water electrolysis technology and providing strong support for fields such as hydrogen production and water treatment
